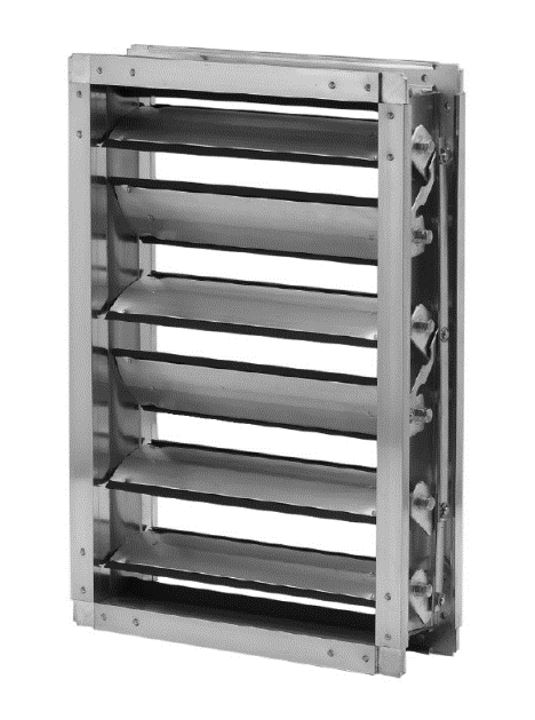

TED40 Economy Insulated Thinline Control Damper
TED40 Economy Insulated Thinline Control Damper

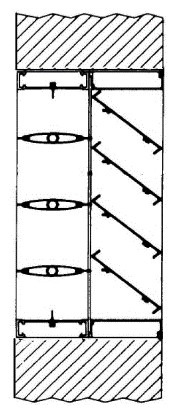

 Great for installation behind louvers
Great for installation behind louvers

The TED40 provides low leakage and thermal performance in a thin line 4" deep frame. Blade profile stays within the frame in the full open position which makes it ideal for mounting against louvers or openings.

CONSTRUCTION
• Extruded aluminum frame and blades
• Foam filled cavities in blade profile
• Molded synthetic axle bearings
• Extruded Ruskiprene blade seals locked into blades
• Flexible stainless steel compression jamb seals
• Concealed linkage mechanically locked in blade


TED40 Blade
Blade cavities are filled with polyurethane foam for added thermal protection

VARIATIONS
• Anodized finishes
• Factory installed actuators and switches
• Front and/or rear flanges
• Stainless steel linkage
